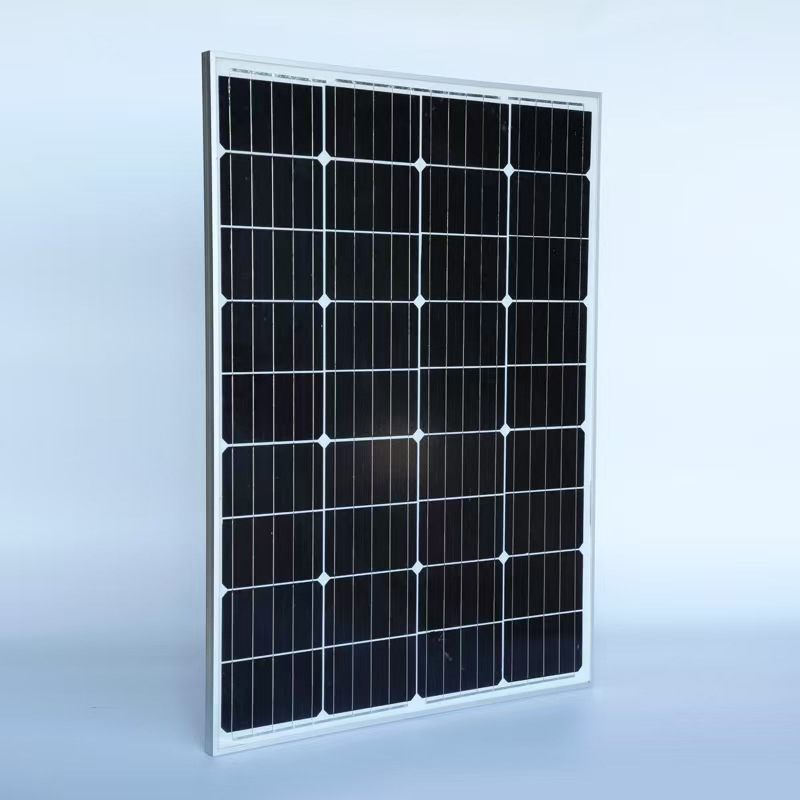

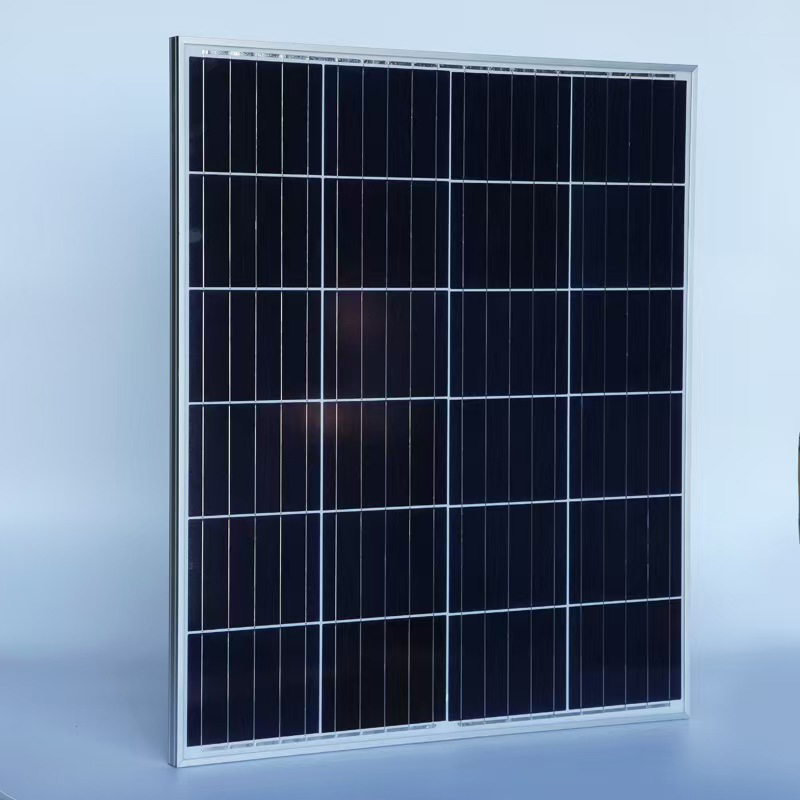

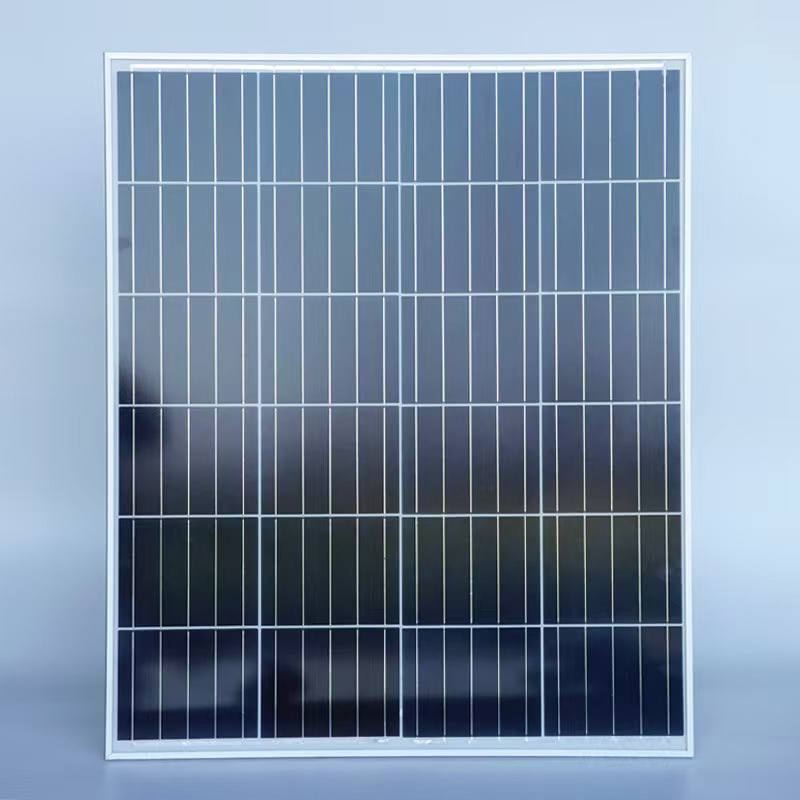

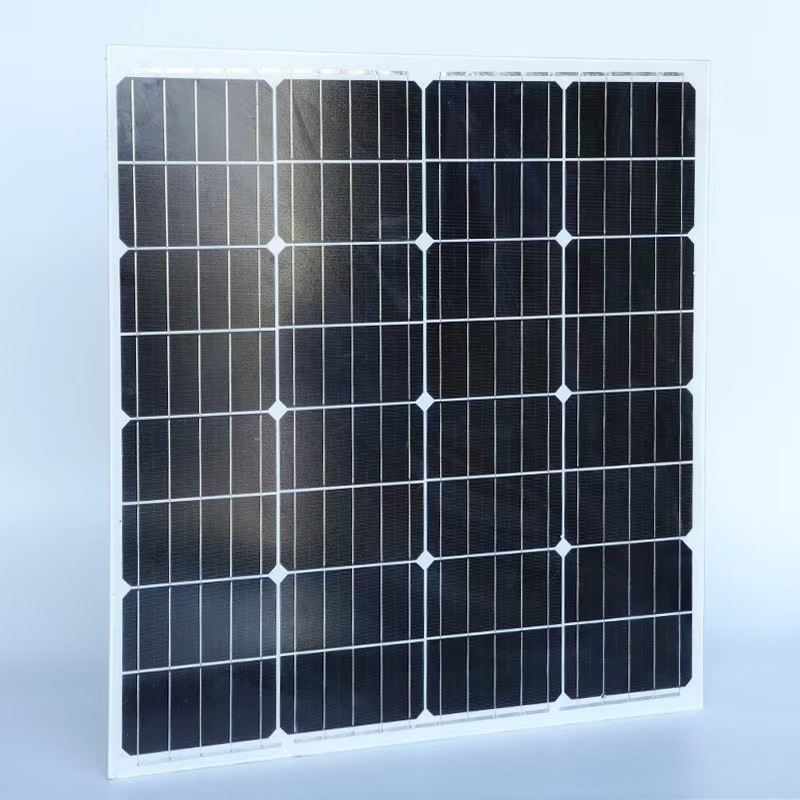

Solar Panel

Model NO.

ZJ-007

Condition

New

Material

Monocrystalline Silicon

Solar Cell

5bb 6bb 9bb 12bb Mono

OEM Order

Acceptable

Junction Box

IP65 Waterproof

Glass

3.2mm, High Transmission, LowIron, Tempered

Cable

PV Cable 4mm^2, 300/1400mm

Origin

Yangzhou, China

Production Capacity

10000

Application

Light Industry

Application 1

Solar System

Certification

ISO,CE

Frame

Anodized Aluminium Alloy

Frame Color

Silvery or Black

Panel Efficiency

21.25%

Transport Package

Wooden Plate/Carton and Pallet Packing

Trademark

ZiJun

Number of Cells

72pcs

HS Code

854140200

Product Name:

PV Mono Solar Panel for Solar Power System

Model Number:

YLT 175W 1580*808 (6*12=72 Cells)

Standard:

TUV, IEC61215, CE & EN

Place of Origin:

Jiangsu of China

Solar cell spec:

125*125 Monocrystalline silicon solar cells

Specifications:

PV module with 175W maximum power

Max. System voltage:

1000V DC

Power tolerance:

0%-3%

Surface max. Load capacity:

70m/S(200KG/sq. M)

Weight:

15KG

Dimensions:

1580mm*808mm*50mm

Open circuit voltage(V):

43.9V

Short circuit current(A):

5.30A

Max. Power voltage(V):

36.2V

Max. Power current(A):

4.85A

Module efficiency(%):

≥ 21.25%

FF(%):

70%

Model Mono solar panel

ZJ-012

ZJ-013

ZJ-014

ZJ-015

ZJ-016

ZJ-017

ZJ-018

Rated Maximum Power at STC

300W

330W

360W

390W

480W

500W

520W

Open Circuit Voltage(Voc/V)

32.1A

38.4V

39.1V

39.8V

48.7V

49.1V

49.5V

Maximum PowerVoltage(Vmp/V)

9.5A

8.59A

9.21A

9.8A

9.86A

10.18A

10.51A

Short Circuit Current(Isc/A)

38.52V

46.08V

46.92V

47.76V

58.44V

58.92V

59.4V

Maximum Power Current(Imp/A)

9.81A

9.02A

9.67A

1029A

10.35A

10.69A

11.03A

Module Efficiency(%)

18.63%

17.18%

18.74%

20.30%

18.92%

19.71%

20.50%

Power Tolerance

-0~+5%

Standard Test Condition(STC)

Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass1.5

Application Class

Class A
